In today’s advanced manufacturing landscape, the thermoplastic enclosure manufacturing process is redefining how engineers design lightweight, durable, and fully recyclable structures. Whether used in electric vehicles, industrial cabinets, or energy storage systems, thermoplastic sandwich enclosures are reshaping the future of material engineering — combining mechanical strength, thermal insulation, and sustainability in one intelligent process chain.

At Jota Machinery, we design and manufacture roll-to-roll composite processing systems — from UD tape impregnation lines to double-belt lamination and thermoforming equipment — enabling global producers to build next-generation thermoplastic panels and enclosures efficiently and responsibly.

Unlike conventional metal or thermoset housings, thermoplastic enclosures are based on fusion-bonded sandwich panels — typically consisting of:

• Outer skins: high-strength composite sheets (glass fiber, carbon fiber, or aramid) impregnated with thermoplastic resin such as polypropylene (PP), polyamide (PA), or polycarbonate (PC).
• Core: a lightweight, low-density structure — often foamed PP, PET, or a honeycomb layer — that provides stiffness and insulation without excess mass.

This combination yields a high stiffness-to-weight ratio, enabling enclosures that are 20–50% lighter than aluminum while maintaining comparable mechanical integrity.
More importantly, all layers are thermoplastic — meaning they can be re-melted, re-formed, and recycled, closing the loop of material life cycles.

Every thermoplastic enclosure begins with the core — the heart of the sandwich structure.

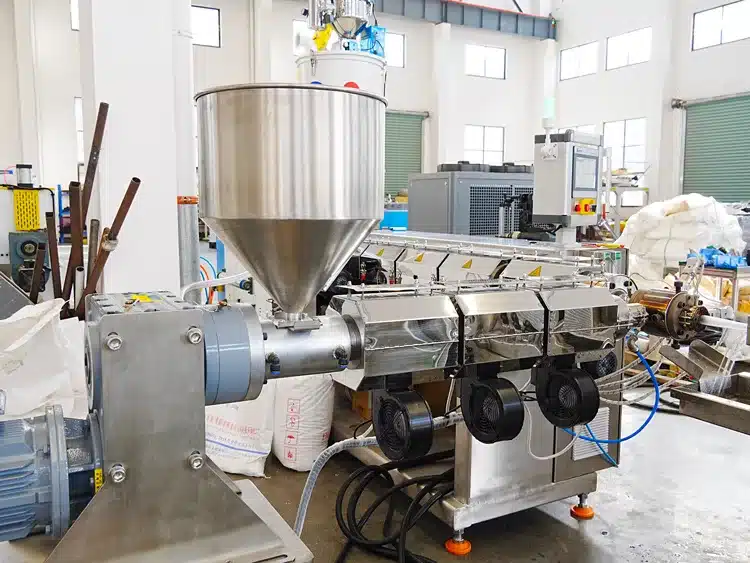

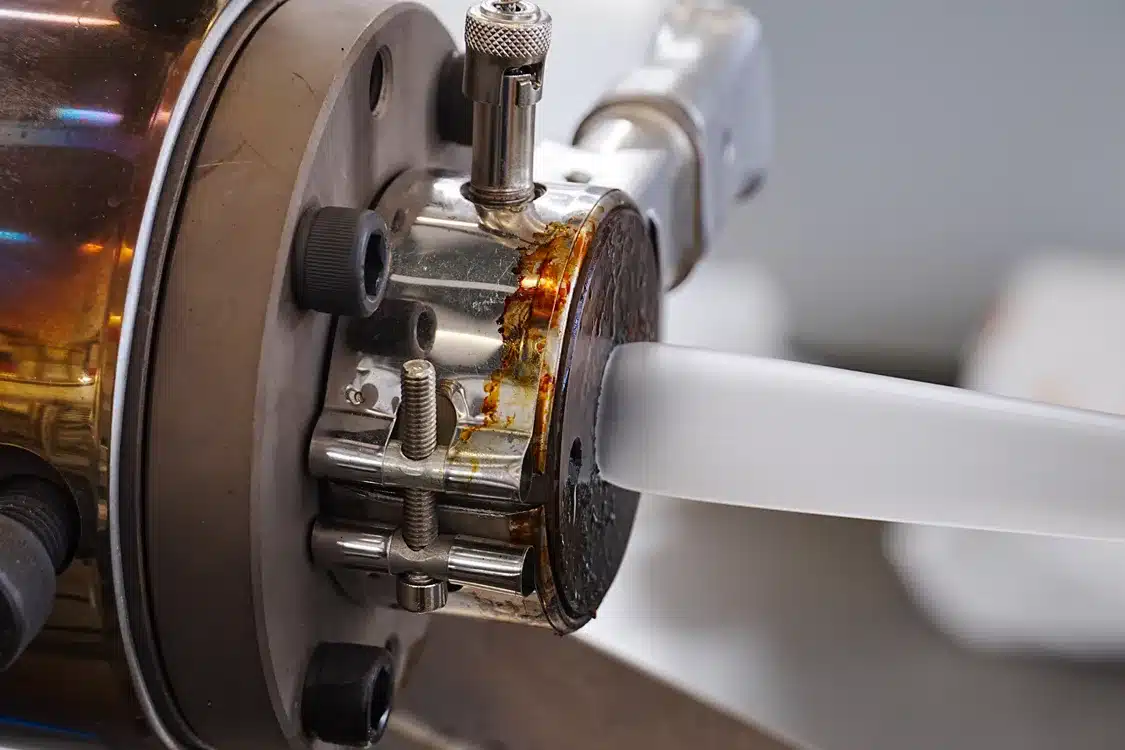

The process starts by extruding recycled thermoplastics such as PP or PET mixed with foaming agents and stabilizers at temperatures of 180–200 °C.

Inside the twin-screw extruder, the melt is pressurized (up to 3000 psi) until foaming agents release gases like nitrogen or carbon dioxide, creating a closed-cell foam structure with densities between 400–800 kg/m³.

This step determines critical performance factors:

• Lower density → lighter panels and better insulation.
• Uniform cells → consistent compressive strength.
• Controlled cooling → dimensional stability.

For advanced performance, chopped glass fibers (≈15 wt%) or high-melt-strength PP are incorporated, improving ductility and mechanical integrity. Jota’s precision feeding and temperature control systems maintain stable output to avoid premature foaming or voids during extrusion.

The outer skins define the enclosure’s surface quality and load resistance.

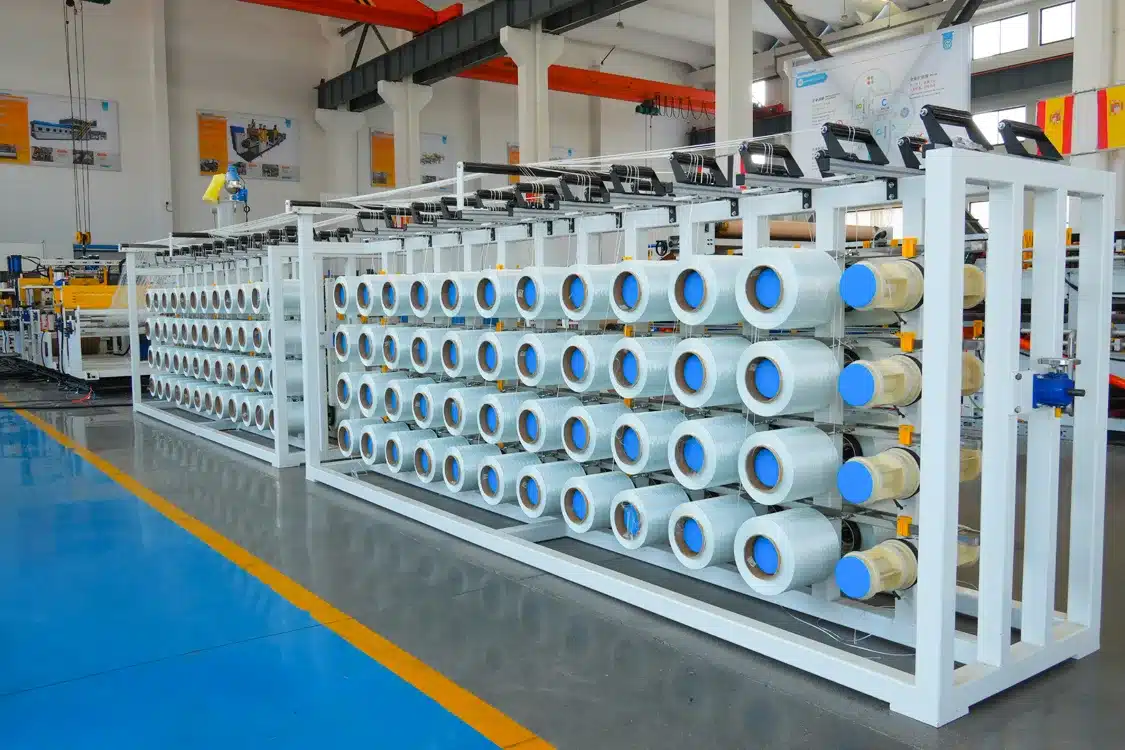

These are often fiber-reinforced thermoplastic sheets — also known as organosheets or UD tape laminates. Production involves impregnating continuous fibers with molten resin on Jota’s UD tape prepreg lines, followed by consolidation under controlled temperature and tension.

Typical combinations include:

• Glass fiber / PP for cost-effective stiffness.
• Carbon fiber / PA for structural components in EVs.
• PET-based organosheets for full recyclability.

After cooling, the sheets are cut and preheated to the forming temperature range of 160–180 °C, ready for lamination.

4. Step Three: Bonding Core and Skins — The Double-Belt Lamination Process

Bonding the skins to the core transforms materials into a true sandwich panel.

Modern production lines use continuous double-belt presses, allowing high-speed, adhesive-free lamination through thermal fusion.

1. Core sheet and preheated skins enter the heated zone.
2. Both surfaces soften as they contact the steel belts at ~200 °C.
3. Roller pressure (~1.5 MPa) ensures resin flow into the core’s micro-structure.
4. Controlled cooling solidifies the bond before trimming.

This fusion bonding eliminates adhesives, improving recyclability and interfacial strength.
Continuous operation (2–3 ft/min) supports large-scale panel manufacturing up to 1.5 m width — ideal for automotive, construction, or industrial enclosure panels.

For premium adhesion, compression molding can be used instead. It delivers peel strengths above 3000 N/m, though in batch mode, making it suitable for structural or safety-critical components.

5. Step Four: Shaping — The Thermoforming Process

Once laminated, flat panels are shaped into functional enclosures using thermoforming, where sheets are heated to 180–190 °C until pliable and then formed over a mold using vacuum, pressure, or both.

Thermoforming enables:

• Complex 3D geometries (battery covers, housings, ducts).
• Smooth surface textures without secondary finishing.
• Short cycle times suitable for mass production.

In high-volume lines, twin-sheet thermoforming can produce double-wall structures (like HVAC ducts) by heating and fusing two sheets simultaneously, trapping an insulating air gap.
Temperature uniformity and controlled cooling (≈120 °C) prevent internal stress and delamination between layers.

6. Step Five: Finishing, Assembly, and Integration

After forming, CNC trimming, edge sealing, and surface treatment prepare the enclosure for assembly. Depending on the design, panels may be:

• Welded via vibration or induction welding for airtight joints.
• Over-molded by injection to add ribs, bosses, or flanges.
• Mechanically fastened using inserts and gaskets for serviceable designs.

Final steps include leak testing, dimensional inspection, and EMI coating for electronic housings.
Because thermoplastics allow integrated molding of features, enclosure assemblies often replace multi-part metal housings with a single consolidated composite shell, reducing weight and assembly time.

7. Key Equipment Used in the Process

A complete thermoplastic enclosure manufacturing line integrates several specialized machines:

Equipment	Function	Jota Machinery Role
UD Tape Impregnation Line	Impregnates fibers with molten resin to produce continuous fiber tapes	Developed with servo precision and tension control
Double-Belt Laminator	Continuously bonds core and skins under heat and pressure	Core technology for flat sandwich panel manufacturing
Thermoforming System	Shapes panels into 3D enclosures via vacuum or pressure	Available in single or twin-sheet configurations
Compression Press	Provides batch bonding with superior peel strength	Optional for structural or hybrid applications
CNC Cutting / Edge-Finishing System	Ensures precise dimensions and clean contours	Integrated with Jota’s automated handling solutions

This integrated chain allows end-to-end production — from fiber impregnation to finished enclosure — within one coordinated line.

8. Manufacturing Challenges and Process Optimization

Even with advanced equipment, producing defect-free thermoplastic enclosures requires strict control of processing parameters:

• Temperature balance: Uneven heating may cause delamination or voids between skins and core.
• Pressure control: Excessive roller pressure can collapse the core; insufficient pressure leads to weak bonds.
• Foaming behavior: Over-foamed cores reduce mechanical strength.
• Cooling gradient: Too rapid cooling introduces residual stress or warping.

Modern solutions include induction heating for precise fusion control, in-line thickness sensors, and closed-loop servo tension systems, many of which are built into Jota’s lamination and slitting platforms.

9. Sustainability and Recyclability Advantages

One of the strongest arguments for thermoplastic enclosure systems is their circular-economy potential.
Because they are fully thermoplastic, panels can be ground and remelted into pellets for re-extrusion. No adhesives or thermoset layers hinder recyclability.

Additional benefits:

• Use of recycled PET or PP waste for the core.
• No VOC emissions from adhesives or curing resins.
• Compatibility with automated dismantling at end-of-life.

In the context of global sustainability targets — especially in automotive and renewable-energy industries — thermoplastic sandwich enclosures deliver both environmental and cost performance advantages.

10. Industrial Applications of Thermoplastic Enclosures

Thermoplastic enclosures are now appearing across diverse industries:

Application	Function	Material System

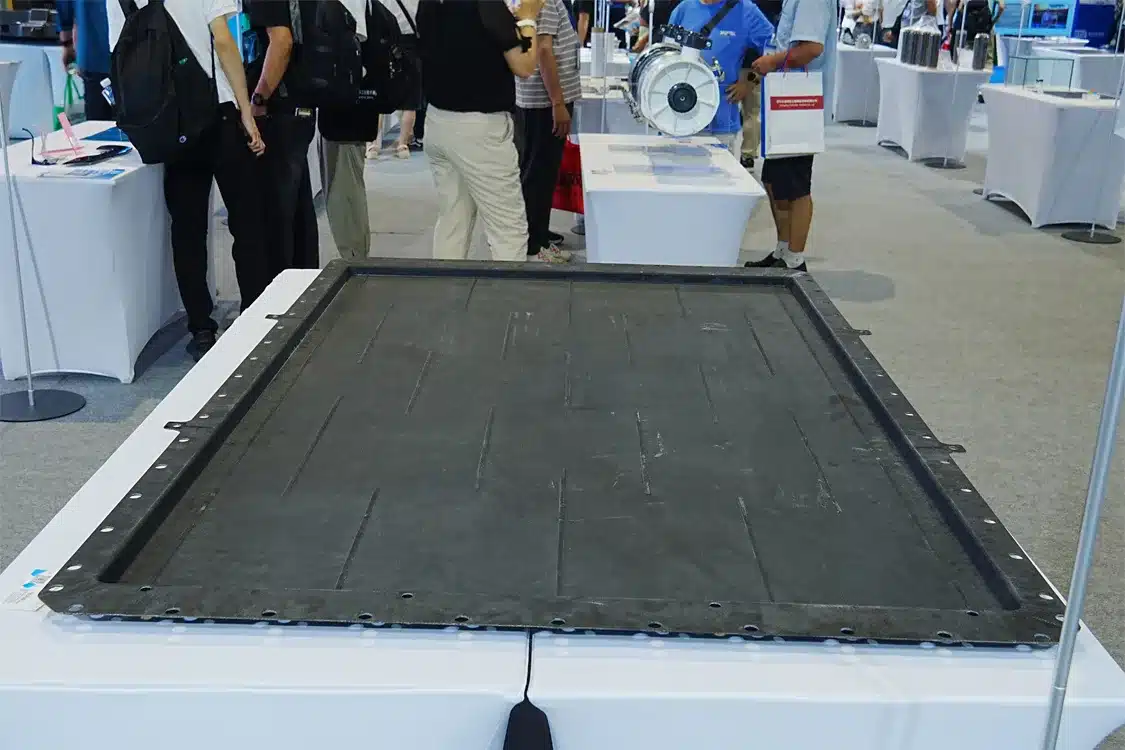

EV Battery Covers & Trays	Impact-resistant, flame-retardant shells	Glass / PP or PC/PBT composite sandwich
Electrical Cabinets & Control Boxes	Corrosion-free, insulated housings	PET or PC/ABS blends
Construction & HVAC Panels	Thermal-insulated air ducts and claddings	PP foam or honeycomb cores
Transportation Roofs & Floors	Lightweight structural panels	CF/PP or CF/PA laminates
Renewable Energy Housings	Wind turbine or hydrogen storage shells	Recycled PET sandwich panels

These enclosures replace aluminum or steel alternatives, achieving up to 40% weight reduction, easier processing, and long-term durability.

11. Future Trends: Intelligent, Automated, and Circular

The future of thermoplastic enclosure manufacturing lies in automation and smart integration:

• Real-time monitoring: AI-assisted sensors tracking temperature, tension, and thickness.
• Automated lay-up systems: robotically stacked UD tape or organosheet prepregs.
• Modular cores: adjustable honeycomb geometries for localized stiffness.
• Hybrid molding: combining compression and injection processes for functionalized parts.
• Full recyclability loops: enabling manufacturers to reclaim and reuse every component.

As industries transition toward lightweight electrification and zero-emission targets, these innovations make thermoplastic enclosures central to sustainable design strategies.

12. Why Jota Machinery?

For over two decades, Jota Machinery has specialized in continuous fiber-reinforced thermoplastic processing equipment, serving industries from aerospace to automotive composites.
Our systems — including UD tape slitting rewinders, double-belt laminators, and thermoplastic prepreg lines — empower manufacturers to produce consistent, high-performance panels for demanding applications such as RTP pipelines, automotive housings, and structural enclosures.

Each machine is engineered for:

• Precise temperature and tension control
• 24-hour stable operation
• CE-compliant safety and automation standards

The Future Is Thermoplastic

The thermoplastic enclosure manufacturing process represents the convergence of material innovation and process intelligence.
Through extrusion, lamination, and thermoforming, manufacturers can produce lightweight, impact-resistant, and fully recyclable enclosures ready for modern mobility and energy systems.

As markets move toward sustainable, high-efficiency production, thermoplastic composites are no longer an alternative — they are the mainstream solution.
