Carbon Fiber Became the New Standard for Tour de France Racing Bikes

Updated on July 16, 2026 • 5 min read

The late 1990s marked a turning point in professional cycling—not only because of changes in competition but also because of a fundamental shift in bicycle engineering.

By the end of the decade, carbon fiber composite frames had begun replacing steel and aluminum as the preferred choice for elite road racing. Regardless of how historians interpret the sporting results from that period, one engineering trend is clear: carbon fiber had established itself as the dominant structural material for Tour de France bicycles.

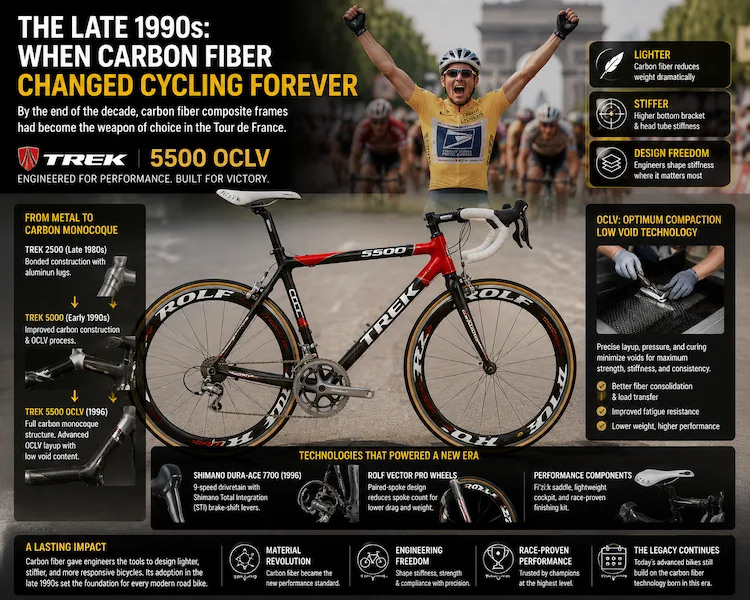

Among the most influential machines of the era was the Trek 5500 OCLV, a bicycle that demonstrated how advanced composite manufacturing could reduce weight while increasing frame stiffness and opening new possibilities for performance-oriented design.

Composite Manufacturing Replaced Traditional Frame Construction

Early carbon bicycles often relied on bonded construction, combining carbon fiber tubes with aluminum lugs.

Trek initially followed this approach with the Trek 2500, introduced in the late 1980s, before developing its proprietary OCLV (Optimum Compaction Low Void) manufacturing process.

The subsequent Trek 5000 and 5500 shifted toward a carbon fiber monocoque structure, in which the outer composite shell carries the structural loads rather than relying on separate metallic joints.

Reducing void content during composite consolidation allowed engineers to improve laminate quality and structural consistency while minimizing unnecessary weight.

Compared with conventional metallic frames, carbon fiber also enabled greater freedom to optimize tube profiles and stiffness distribution without significantly increasing mass.

Carbon Fiber Changed Bicycle Design

The transition to composite materials was not solely about reducing weight.

Carbon fiber’s directional properties allow engineers to place reinforcement only where structural loads require it. This enables localized stiffness around the bottom bracket and head tube while maintaining greater compliance in other regions to improve ride quality.

Unlike isotropic materials such as steel or aluminum, composite laminates can be tailored through fiber orientation, stacking sequence and wall thickness to achieve different structural characteristics throughout a single frame.

These design freedoms continue to define modern high-performance bicycle engineering.

Other Technologies Supported the Transition

The Trek 5500 represented more than a new frame material.

The bicycles used during this period also incorporated several technologies that would influence future racing equipment.

The Shimano Dura-Ace 7700 groupset introduced nine-speed transmission together with Shimano Total Integration (STI) brake-shift levers, while lightweight Rolf Vector Pro paired-spoke wheels reduced spoke count to improve aerodynamic performance and rotational efficiency.

Although many details—including quill stems, one-inch steerers and rim brakes—have since disappeared from professional racing, the carbon fiber frame architecture established during this period remains the foundation of today’s road bicycles.

Carbon Fiber Reshaped Bicycle Manufacturing

Professor’s Analysis

The adoption of carbon fiber fundamentally changed how bicycles are engineered and manufactured.

Metal frames are primarily designed by adjusting tube diameter, wall thickness and joining methods. Composite frames introduce an additional design variable: fiber architecture.

Engineers can independently optimize stiffness, strength, vibration behavior and weight by modifying fiber orientation and laminate sequence rather than changing geometry alone.

Manufacturing also shifted from metal fabrication toward composite processing techniques involving prepreg layup, molding, vacuum consolidation and controlled curing. As a result, material science became as important as frame geometry in determining bicycle performance.

Many manufacturing principles first refined for high-end racing bicycles later influenced composite development in other lightweight transportation sectors, including automotive and aerospace.

Composite Materials Continue to Define High-Performance Cycling

Modern professional bicycles differ significantly from those raced at the beginning of the century, incorporating disc brakes, integrated cockpits, aerodynamic tube profiles and wider tires.

Yet one technology has remained constant: carbon fiber composite construction.

For the composites industry, the Trek 5500 era represents a milestone in the broader adoption of advanced composite manufacturing, demonstrating how material engineering can permanently reshape product design in one of the world’s most demanding performance environments.
