Author: [Bruce Zhou]
Affiliation: [Jota Machinery Composites Material Prepreg Solution]
Corresponding Author: [jotamachinery@gmail.com]
Published : December 16 , 2025

Abstract

Automated Fiber Placement (AFP) requires narrow unidirectional prepreg tapes to behave as mechanically stable and dimensionally consistent feedstock under controlled heating and compaction. While AFP system performance is often evaluated in terms of robotic accuracy and thermal control, manufacturing experience shows that prepreg slitting quality has a decisive influence on placement stability and laminate integrity. This paper outlines how slit-tape width control, edge condition, resin distribution, and roll tension uniformity affect AFP process reliability. The analysis demonstrates that prepreg slitting must be treated as a critical upstream process rather than a secondary material conversion step.

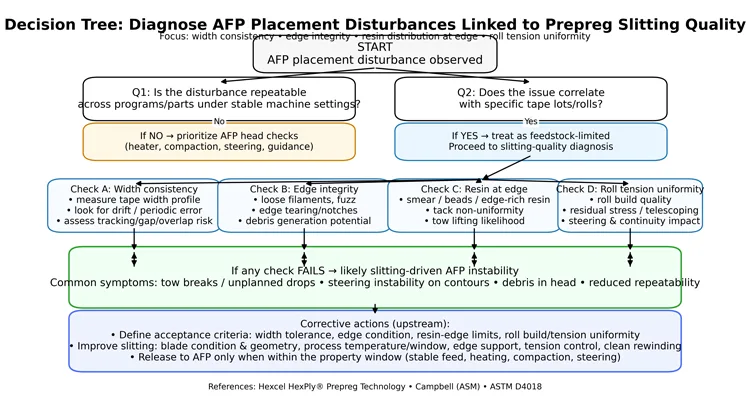

prepreg slitting quality automated fiber placement

Keywords

Automated Fiber Placement; Prepreg Slitting; Slit Tape Quality; Tow Stability; Edge Integrity

1. Introduction

AFP processes place narrow prepreg tapes, typically 3.175 mm to 12.7 mm in width, onto complex geometries with high positional accuracy. The AFP head assumes that incoming tape exhibits uniform width, stable tack behavior, and consistent mechanical response during feeding, heating, compaction, and steering.

In practice, a significant portion of AFP placement disturbances originates from prepreg tape preparation. Defects such as tow drops, steering instability, surface contamination, and inconsistent consolidation are frequently linked to tape slitting and rewinding rather than to AFP machine settings. These issues cannot always be mitigated through parameter adjustment, indicating that feedstock quality is a limiting factor.

2. Background

Unidirectional prepreg tape is the preferred reinforcement form for AFP due to its load efficiency and compatibility with automated deposition. Prepreg manufacturing ensures controlled resin content and fiber alignment; however, converting wide prepreg sheets into narrow tapes introduces additional variables.

Cutting mechanics, resin state at the tape edge, and tension control during rewinding directly influence tape behavior during AFP processing. These factors are not fully addressed by conventional material specifications but become critical when tapes are subjected to repeated heating, bending, and compaction cycles inside an AFP head.

3.1 Width Consistency

Variations in slit-tape width disrupt tracking through the AFP head and increase the risk of gaps or overlaps, particularly on curved or steered courses.

3.2 Edge Integrity

Poor edge quality leads to loose filaments or resin accumulation. Under AFP heating and compaction, these defects can detach, contaminating machine components or the laminate surface.

3.3 Resin Distribution at the Edge

Localized resin smear or edge beads alter tack behavior, reducing placement stability and increasing the likelihood of tow lifting or rework.

3.4 Roll Tension Uniformity

Non-uniform rewinding tension introduces residual stress into the tape. During AFP feeding, this stress is released unevenly, affecting tow steering and placement continuity.

4. Impact on AFP Operation

When slitting quality is insufficient, AFP systems commonly exhibit:

  • Increased tow breaks and unplanned tow drops
  • Steering instability on contoured paths
  • Accumulation of fiber debris within the placement head
  • Reduced placement repeatability and higher operator intervention

These effects occur even under stable AFP machine settings, confirming that the root cause lies upstream in tape preparation.

5. Discussion

AFP performance is governed by a system interaction between material behavior and machine mechanics. The placement head is designed to operate within a narrow window of tape properties. When slit prepreg deviates from this window, machine-level corrections become ineffective or introduce new instabilities.

From an engineering standpoint, prepreg slitting should be integrated into the AFP process definition. Acceptance criteria for slit-tape width tolerance, edge condition, and roll build integrity are essential for predictable automated placement.

6. Conclusion

Prepreg slitting quality is a governing factor in Automated Fiber Placement performance. Narrow-tape AFP applications impose mechanical and rheological demands that cannot be satisfied by dimensional cutting alone. Consistent width, clean edges, stable resin distribution, and uniform roll tension are prerequisites for reliable placement.

Treating prepreg slitting as a critical upstream process improves AFP stability, reduces defect generation, and supports consistent aerospace composite manufacturing.

References

  1. Hexcel Corporation. HexPly® Prepreg Technology, Technical Guide.
  2. Campbell, F. C. Manufacturing Processes for Advanced Composites. ASM International.
  3. ASTM D4018. Standard Test Methods for Properties of Continuous Fiber Prepregs.
  1. Daniel, I. M., & Ishai, O. Engineering Mechanics of Composite Materials. 2nd ed. Oxford University Press. Chapter 10: Experimental Methods for Characterization and Testing of Composite Materials.
  2. ASTM D3039/D3039M. Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials. ASTM International.
  3. ASTM D3410/D3410M. Standard Test Method for Compressive Properties of Polymer Matrix Composite Materials with Unsupported Gage Section by Shear Loading. ASTM International.
  4. ASTM D3518/D3518M. Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate. ASTM International.
  5. ASTM D4255/D4255M. Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by Rail Shear Method. ASTM International.
  6. ASTM D5528. Standard Test Method for Mode I Interlaminar Fracture Toughness of Unidirectional Fiber-Reinforced Polymer Matrix Composites. ASTM International.
  7. ASTM D7905/D7905M. Standard Test Method for Mode II Interlaminar Fracture Toughness of Unidirectional Fiber-Reinforced Polymer Matrix Composites Using the End-Notched Flexure (ENF) Test. ASTM International.
  8. ASTM D2344/D2344M. Standard Test Method for Short-Beam Strength of Polymer Matrix Composite Materials and Their Laminates. ASTM International.
