Author: [Bruce Zhou]
Affiliation: [Jota Machinery Composites Material Prepreg Solution]
Corresponding Author: [jotamachinery@gmail.com]
Published : April 08 , 2026
Abstract
Over the past two decades, spoolable composite pipe systems have moved from experimental deployment to serious consideration in both offshore and onshore oil and gas transportation. Early reinforced thermoplastic pipe (RTP) applications, particularly those driven by Saudi Aramco in the early 2000s, demonstrated that non-metallic pipelines could replace steel in corrosive environments when supported by proper qualification methodology. These systems relied on statistical design, long-term hydrostatic testing, and damage tolerance validation to build operator confidence.
However, modern thermoplastic composite pipe (TCP) represents a fundamentally different structural concept. Unlike RTP, which relies on non-bonded or semi-bonded reinforcement, TCP is a fully bonded laminate system where liner, reinforcement, and outer layer must act together. This shift changes the engineering problem entirely. Reliability is no longer governed primarily by qualification statistics alone, but by whether manufacturing can consistently produce a defect-controlled structure.
This paper connects these two stages of technology development. It examines how RTP established the industry’s qualification logic and how TCP introduces a new challenge: manufacturing-driven integrity. By linking process variables, defect formation, and in-service performance, the paper argues that composite pipeline reliability is now determined at the production line rather than in post-manufacture testing alone. The practical conclusion is direct: for offshore and onshore transport applications, manufacturing discipline must be treated as part of structural design.
Keywords
reinforced thermoplastic pipe, RTP pipeline, thermoplastic composite pipe, TCP pipeline, composite pipe defects, spoolable pipeline systems, offshore composite pipeline, non-metallic pipe, fibre misalignment, void formation, pipeline integrity
1. Introduction
In oil and gas transportation, pipeline failure rarely comes from a single cause. It is usually the result of material limitations, environmental exposure, and operational stress acting together over time. For decades, steel pipelines dominated because they were predictable, well understood, and supported by mature standards. But they came with a cost—corrosion, maintenance, weight, and installation complexity.
The industry did not adopt composite pipelines because they were new. It adopted them because steel stopped being practical in certain environments.
That shift began with reinforced thermoplastic pipe. Early RTP deployments, especially in Saudi Arabia, were not laboratory experiments. They were responses to real operational problems—internal corrosion that could not be controlled economically with inhibitors, repeated pipeline replacement, and rising lifecycle costs. The solution was simple in concept: replace steel with a corrosion-resistant, spoolable pipe system that could be installed quickly and maintained with minimal intervention.
Those early systems worked. But they worked because they were qualified carefully.
Today, the conversation has moved to thermoplastic composite pipe. TCP promises higher pressure ratings, better structural performance, and wider offshore applicability. But it also introduces a new risk. Unlike RTP, TCP is a bonded structure. That means its performance depends on how well it is manufactured, not just how well it is tested.
This paper looks at that transition. Not as a marketing story, but as an engineering shift—from qualification-driven reliability to manufacturing-driven reliability.
2. Literature Review
2.1 RTP: The First Step Toward Composite Pipeline Acceptance
The early 2000s Saudi Aramco work remains one of the most important reference points for composite pipe adoption. RTP systems were deployed in corrosive service where steel pipelines were failing repeatedly. These were not short-term trials. They included trunklines, flowlines, and water injection systems operating under real field conditions.
What made RTP acceptable was not just its material composition. It was the qualification framework built around it.
The Joint Industry Project (JIP) involving major operators introduced a performance-based approach. Instead of relying on nominal material properties, RTP was validated through long-term hydrostatic testing, regression analysis, and statistical safety factors. This allowed engineers to define pressure ratings based on data, not assumptions.
The elevated temperature survival test was particularly important. It accelerated failure mechanisms and exposed weaknesses in liner behavior and fitting performance. In practice, this test often proved more demanding than standard regression analysis.
From an engineering standpoint, RTP succeeded because it answered one question clearly:
Can this pipe survive real operating conditions over time?
2.2 TCP: A Different Structural Problem
TCP builds on RTP but changes the internal logic of the pipe.
RTP typically uses discrete reinforcement layers that are not fully bonded to the liner. TCP, on the other hand, is a consolidated laminate. The reinforcement, matrix, and liner are fused into a single structural wall.
This improves performance. It allows higher pressure capability, better load distribution, and more efficient use of reinforcement.
But it also removes a level of tolerance.
In RTP, local defects can sometimes remain localized. In TCP, defects can propagate through the bonded structure. That makes manufacturing quality a first-order variable.
2.3 Shift from Qualification to Manufacturing Control
The literature shows a clear transition.
- RTP research focuses on qualification, safety factors, and damage tolerance
- TCP research focuses on process control, defect formation, and interface behavior
This is not accidental. It reflects a deeper shift in where risk is generated.
With RTP, risk is managed through testing and conservative design.
With TCP, risk is created—or eliminated—during manufacturing.
3. Methodology
This work is based on comparative technical analysis rather than new experimental data. The approach combines:
- Review of RTP field deployment and qualification practices (Saudi Aramco case)
- Analysis of TCP manufacturing processes and defect mechanisms
- Interpretation of how these factors translate into offshore and onshore service performance
The objective is not to repeat existing studies, but to connect them into a usable engineering framework.
The analysis follows a simple structure:
- What controls pipe quality during manufacturing
- What defects are most critical
- How those defects behave under real operating conditions
4. Results
4.1 RTP Reliability Comes from Qualification Discipline
RTP systems demonstrated that composite pipelines could replace steel when supported by:
- Long-term hydrostatic testing
- Statistical regression models
- Defined safety factors
- Field validation
This created confidence. Operators could understand failure probability and design accordingly.
4.2 TCP Reliability Comes from Manufacturing Stability
TCP shifts the focus. Because it is a bonded structure, performance depends on:
- Interlayer bonding quality
- Fibre orientation accuracy
- Void content and distribution
- Residual stress
These are not post-production variables. They are created during manufacturing.
4.3 Process Variables Directly Create Defects
Key process factors include:
- Heat input
- Consolidation pressure
- Production speed
- Tape tension
- Cooling profile
If any of these are not controlled within a narrow window, defects form.

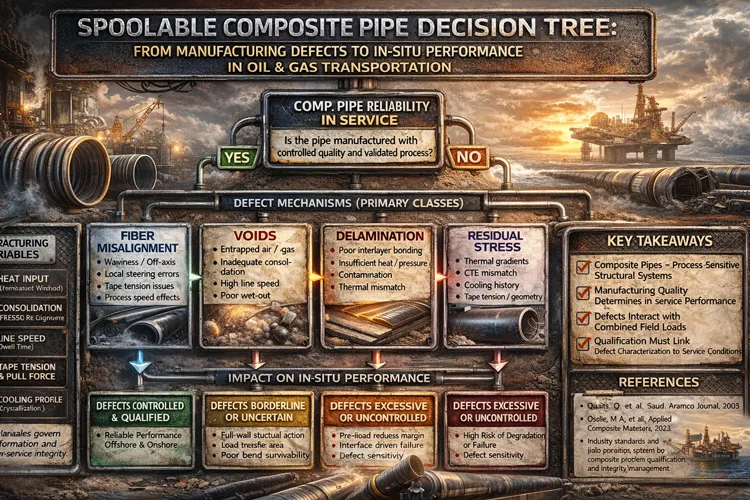

4.4 Critical Defects in TCP Systems
The most relevant defects for pipeline integrity are:
Fibre misalignment
Reduces directional strength and creates instability under bending.
Voids
Interrupt load transfer and act as crack initiation points.
Delamination
Breaks structural continuity in bonded systems.
Residual stress
Reduces available strength before external loads are applied.
5. Discussion
5.1 Offshore Reality: Combined Loading Changes Everything
Pipelines offshore do not operate under simple conditions. They experience:
- Internal pressure
- Installation bending
- Thermal cycling
- Environmental exposure
- Long-term loading
Under these conditions, defects interact.
A void alone may not cause failure.
A void combined with residual stress and bending might.
5.2 Manufacturing Is Now Part of Design
This is the key shift.
For TCP, design is not complete at the drawing stage. It continues into manufacturing.
If process control is poor, no level of qualification testing can fully compensate.
5.3 What Operators Should Actually Evaluate
Based on field experience, the following questions matter more than marketing claims:
- How is bonding quality monitored during production?
- How is fibre alignment controlled in real time?
- How are voids characterized—not just measured as a percentage?
- How is residual stress evaluated?
- How are defects linked to allowable operating limits?
These are not academic questions. They determine whether the pipe will perform in service.
6. Conclusion
Composite pipeline technology has evolved from RTP to TCP, but the main engineering challenge has shifted.
RTP proved that non-metallic pipelines could work when properly qualified.
TCP shows that higher performance is possible—but only with tighter manufacturing control.
The lesson is clear:
Pipeline reliability is no longer decided only by material selection or qualification testing. It is decided by how well the pipe is made.
For offshore and onshore oil and gas transportation, this means one thing:
Manufacturing discipline is no longer a background process.
It is a structural requirement.
References
- Olabisi, O. et al. Reinforced Thermoplastic Pipe for Oil and Gas, Saudi Aramco Journal, 2003
- Okolie, M. A. et al. Manufacturing Defects in Thermoplastic Composite Pipes, Applied Composite Materials, 2023
- Industry standards and field practices related to composite pipeline qualification and integrity management
