Abstract

Thermoplastic composites are increasingly adopted in high-performance and high-volume applications due to their recyclability, impact resistance, and rapid processing capability. However, their widespread industrialization remains constrained by the complexity of fiber impregnation, primarily caused by the high viscosity of thermoplastic melts. This paper provides a structured analysis of major impregnation methods for continuous fiber-reinforced thermoplastics (CFRTP), including film stacking, powder impregnation, solution impregnation, hot-melt impregnation, hybrid textiles, and commingled yarns. Each method is evaluated based on infiltration length, process efficiency, consolidation requirements, and industrial applicability. The study reveals that impregnation is not a singular operation but a distributed process across multiple stages of manufacturing. Furthermore, it highlights that process selection represents a trade-off between impregnation quality, production speed, and downstream processing complexity. The role of emerging technologies such as in-situ polymerization is also discussed as a potential solution to the viscosity-driven limitations of traditional melt-based systems.

Keywords

Thermoplastic composites; Impregnation methods; Hot-melt impregnation; CFRTP; Fiber wet-out; Prepreg; Infiltration length; Composite processing

1. Introduction

The transition from thermoset to thermoplastic composites has accelerated in recent years, driven by demands for recyclable materials, shorter cycle times, and improved mechanical performance. Despite these advantages, the processing of thermoplastic composites remains fundamentally constrained by the difficulty of achieving uniform fiber impregnation.

Unlike thermosets, which exhibit low viscosity during processing, thermoplastic polymers typically present melt viscosities in the range of 200–5,000 Pa·s. This significantly limits their ability to penetrate dense fiber bundles, making impregnation the central challenge in CFRTP manufacturing.

To address this, various impregnation strategies have been developed. These methods differ not only in processing technique but also in how they distribute the impregnation burden between upstream prepreg production and downstream consolidation. Understanding these trade-offs is essential for selecting the appropriate process for a given application.

2. Classification of Thermoplastic Composite Intermediates

Thermoplastic composite materials can be categorized into two fundamental groups based on their state prior to final forming:

2.1 Fully Impregnated Materials

These materials are already consolidated, with fibers ideally fully wetted by the matrix. Examples include thermoplastic prepregs and UD tapes. Subsequent processing primarily involves reheating and reshaping, with minimal additional impregnation required.

2.2 Semi-Impregnated Materials

In these materials, fibers and matrix are in close proximity but not fully consolidated. Final impregnation occurs during forming processes such as thermoforming or compression moulding. Examples include commingled yarns, powder-coated fibers, and loosely stacked film systems.

This distinction reflects a key industrial reality: impregnation can be completed either before or during final part production, depending on the chosen process route.

3. Impregnation Physics and the Role of Infiltration Length

A critical concept in thermoplastic composite processing is infiltration length, defined as the distance molten polymer must travel to fully wet fiber filaments.

• Long infiltration length → higher pressure and longer processing time required
• Short infiltration length → easier impregnation and improved process efficiency

This concept provides a unifying framework for comparing different impregnation methods. All process innovations aim to reduce infiltration distance or compensate for it through pressure, temperature, or time.

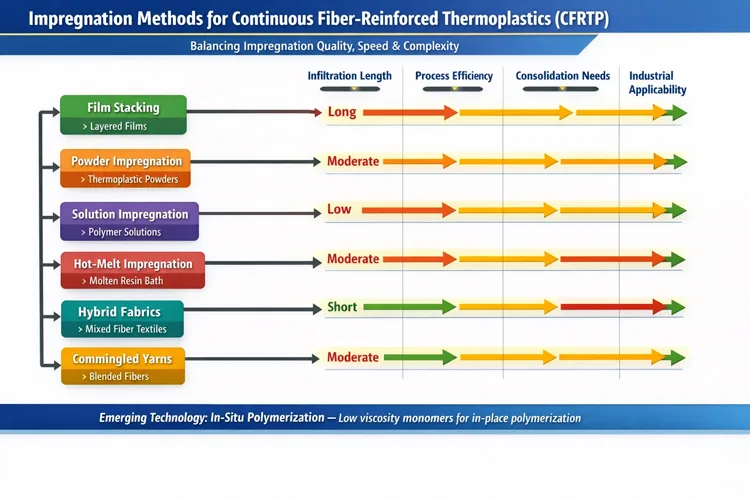

4. Overview of Impregnation Methods

4.1 Film Stacking

Film stacking involves alternating layers of reinforcement and thermoplastic films, followed by heat and pressure to melt the polymer and drive it into the fiber structure.

Advantages

• Simple and cost-effective
• Flexible control of fiber volume fraction

Limitations

• Long infiltration path
• Requires high pressure and long dwell time
• Moderate impregnation quality

Film stacking remains widely used in cost-sensitive applications such as automotive organo-sheets, despite its limitations in achieving low void content.

4.2 Powder Impregnation

In powder impregnation, thermoplastic particles are deposited onto fibers and later melted to achieve wetting.

Advantages

• Improved initial matrix distribution
• Reduced infiltration distance compared to films

Limitations

• High cost of fine powders
• Partial impregnation prior to consolidation
• Dependence on downstream processing

This method primarily serves as a pre-impregnation strategy rather than a complete solution.

4.3 Solution Impregnation

Solution impregnation reduces polymer viscosity by dissolving it in a solvent, enabling easier penetration into fibers.

Advantages

• Low apparent viscosity
• Improved initial wetting

Limitations

• Solvent removal challenges
• Risk of void formation
• Environmental and safety concerns

Due to these drawbacks, this method is limited to specific polymer systems and niche applications.

4.4 Hot-Melt Impregnation

Hot-melt impregnation directly uses molten thermoplastic resin to impregnate fibers. The process typically includes fiber spreading, immersion in a molten bath, mechanical assistance (e.g., pins or rollers), and final consolidation through a die.

Advantages

• High-quality prepreg production
• Potential for full impregnation
• Suitable for high-performance applications

Limitations

• High viscosity limits penetration
• Requires precise temperature control
• Relatively low production speed

Hot-melt impregnation represents the most direct approach to producing fully impregnated thermoplastic prepregs, but it demands careful process design and control.

4.5 Hybrid Fabrics

Hybrid fabrics integrate reinforcement and thermoplastic fibers within a single textile structure.

Advantages

• Good drapability
• Compatibility with textile processing

Limitations

• Limited reduction in infiltration length
• Requires significant consolidation during forming

This method prioritizes forming flexibility over impregnation efficiency.

4.6 Commingled Yarns

Commingled yarns consist of intimately mixed reinforcement and thermoplastic filaments.

Advantages

• Minimal infiltration distance
• Reduced consolidation pressure
• High formability

Limitations

• Fiber damage during mixing
• Reduced fiber alignment

Commingling is one of the most effective strategies for improving impregnation efficiency in semi-finished products.

5. Comparative Process Analysis

All impregnation methods can be interpreted as different solutions to the same engineering problem. Each method shifts the balance between:

• Impregnation quality
• Processing speed
• Equipment complexity
• Downstream consolidation effort

No single method is universally optimal. Instead, process selection depends on application requirements, production volume, and cost constraints.

6. Industrial Implications for Process Design

The analysis highlights several key principles for designing thermoplastic composite manufacturing systems:

1. Impregnation should be treated as a system-level problem rather than a single process step.
2. Fiber preparation (spreading, opening) is as critical as resin flow behavior.
3. Temperature, pressure, and time must be optimized per process stage, not globally.
4. Prepreg quality reduces—but does not eliminate—downstream consolidation requirements.
5. Process compatibility across stages is essential for achieving consistent product quality.

These principles emphasize the importance of integrating prepreg production with downstream forming processes.

7. Emerging Direction: In-Situ Polymerization

To overcome the limitations of high melt viscosity, in-situ polymerization introduces low-viscosity monomers into fiber structures before polymerization occurs.

For example, anionic polymerization of ε-caprolactam enables:

• Near-complete fiber wetting at low viscosity
• Simultaneous polymerization and consolidation
• Reduced pressure requirements

This approach represents a shift from managing viscosity to bypassing it entirely, offering significant potential for future industrial adoption.

8. Conclusion

Thermoplastic composite manufacturing is fundamentally governed by impregnation physics. The high viscosity of thermoplastic melts necessitates innovative process strategies to achieve uniform fiber wetting.

This study demonstrates that:

• Different impregnation methods represent trade-offs rather than direct alternatives
• Impregnation is distributed across multiple processing stages
• Hot-melt impregnation offers high-quality prepregs but requires precise control
• Semi-impregnated systems shift the burden to downstream consolidation
• Emerging technologies such as in-situ polymerization may redefine the process landscape

Ultimately, successful CFRTP production depends on selecting and integrating impregnation strategies that balance performance, efficiency, and scalability.
