RTP vs TCP Pipes: A Practical, Engineer-Level Guide for Real Projects

When teams say “composite pipe,” they often lump RTP (Reinforced Thermoplastic Pipe) and TCP (Thermoplastic Composite Pipe) together. In reality, they solve different problems. One is the flexible, spoolable sprinter for onshore roll-outs. The other is the bonded, deep-strength marathoner for subsea and ultra-high-pressure duty. You don’t need buzzwords — you need a confident choice that holds up under safety audits, CAPEX scrutiny, and field reality. This guide shows you how to make that choice.

1) The Core Difference in One Sentence

• RTP uses unbonded or semi-bonded layers (liner + reinforcement + jacket) to maximize flexibility and install speed across land.
• TCP uses a fully bonded, monolithic laminate (continuous fiber tapes fused into a thermoplastic matrix) to maximize pressure, fatigue life, gas tightness, and subsea reliability.

That one design decision cascades into everything else: pressure ratings, gas service rules, fatigue behavior, spool lengths, minimum bend radius, and ultimately — your total cost of ownership.

2) Anatomy of Each Pipe (and Why It Matters)

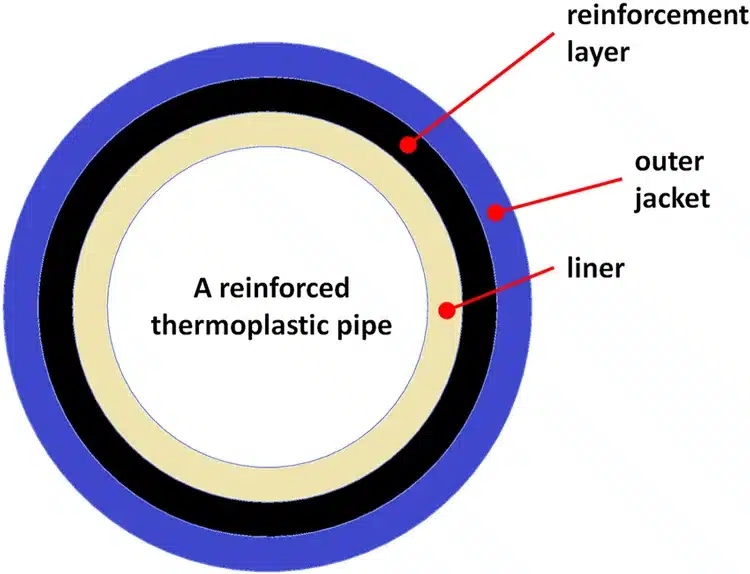

RTP: The Fast-Install Flexible Stack

• Inner liner: HDPE, PE-RT, PA11, PVDF (smooth flow, chemical resistance).
• Reinforcement: Helically wound glass/aramid/carbon fibers or steel wires (strength).
• Outer jacket: Typically UV-stabilized HDPE (abrasion and weather protection).
• Unbonded or semi-bonded: Layers can move slightly under bending, preserving spoolability and install speed.

What this buys you: rapid trenching, easy crossings, long coils (commonly up to ~400 m), fewer joints, minimal welding, and strong performance for onshore gathering lines, water injection, and disposal lines.

TCP: The Monolithic Composite Wall

• Matrix: Thermoplastic (PE, PA) up to high-temperature PEEK for extreme service.
• Fibers: Continuous glass or carbon tapes.
• Bonding: Melt-fused into a single composite wall (no interlayer slip), often with tailored fiber angles for hoop, axial, and fatigue loading.

What this buys you: very high pressure, superior fatigue life (dynamic risers/jumpers), gas tightness without venting paths, long continuous lengths offshore, and high reliability in deepwater environments.

3) Numbers That Drive Decisions

Typical envelopes vary by vendor and spec; the banding below reflects common industry practice.

Attribute	RTP	TCP
Bonding	Unbonded / Semi-bonded	Fully bonded monolithic
Flexibility	High (very spoolable)	Lower (stiffer)
Typical pressure	30–150 bar; heavy-duty variants to ~450 bar	High to ultra-high, commonly >150 bar; up to ~689 bar / 10,000 psi
Temperature	Often ≤85 °C (liner-dependent)	Broader; high-temp matrices (e.g., PEEK)
Gas service	Often requires venting	Gas-tight, no venting
Spool length	Coils commonly up to ~400 m	Much longer continuous lengths offshore
Install speed	Very fast onshore	Fast subsea; fewer tie-ins
CAPEX	Lower to moderate	Higher upfront
OPEX	Low (no corrosion)	Very low in harsh duty (fatigue + pressure)
Best fit	Onshore, medium–high pressure, fast deployment	Offshore/deepwater, ultra-demanding service

4) Pressure, Fatigue, and Gas Service — The Big Three

Pressure:

• RTP comfortably covers medium to high pressures (typ. 30–150 bar), with steel-reinforced RTP pushing toward ~450 bar in some lines.
• TCP is the heavy hitter for very high pressure, routinely designed for >150 bar and reaching ~10,000 psi.

Fatigue:

• Subsea dynamics (waves, currents, vessel motion) punish pipes with cyclic loads. TCP’s bonded laminate endures bending and cycling exceptionally well — one reason it dominates risers/jumpers.
• RTP handles onshore pressure cycles well, but its design focus is flexibility and speed rather than dynamic fatigue at depth.

Gas service:

• RTP’s unbonded wall typically needs venting for permeated gas.
• TCP’s gas-tight bonded wall eliminates venting hardware, simplifying high-pressure gas service offshore.

5) Installation Economics: Where Each Saves Money

RTP is the onshore cost-killer:

• Spoolable coils reduce joints and speed up stringing (think ~1,000 m/day class in favorable jobs).
• Minimal welding, fewer heavy lifts, simple logistics across uneven terrain.
• Rapid mobilization translates directly into lower construction overhead.

TCP is the offshore risk-reducer:

• Long continuous lengths reduce tie-ins, weak points, and offshore vessel time.
• Fatigue and pressure margin reduce interventions over the field’s life.
• For deepwater, TCP’s lifecycle savings often outweigh the higher purchase price.

6) Materials and Manufacturing: Feedstock Quality Decides Field Performance

Materials that show up again and again:

• RTP liners: HDPE / PE-RT for broad utility; PA11/PVDF when heat and chemicals rise.
• Reinforcement: Glass for value, aramid for strength-to-weight, carbon for stiffness; steel wires for heavy-duty RTP.
• TCP matrices: PE/PA for mainstream; PEEK when temperatures and chemicals demand it.
• TCP fibers: Continuous glass (cost-effective) or carbon (stiffness/fatigue advantage).

Manufacturing notes that matter:

• RTP relies on precise helical winding and tension control. Poor fiber placement or resin compatibility can shorten life.
• TCP relies on void-free melt fusion of tapes, accurate fiber angles, and consistent consolidation to achieve design allowables.

Why Jota Machinery is relevant:
To hit those allowables, you need stable, uniform thermoplastic tapes. That starts with:

• Thermoplastic impregnation lines for precise fiber wet-out.
• Double-belt press consolidation for void-free organosheets/UD tapes.
• High-accuracy slitter-rewinders to deliver tight-edge, low-defect tapes for filament winding or tape placement.
  Better feedstock = fewer defects = predictable pipes.

7) Standards, Qualification, and Failure Modes

Standards & practices (typical landscape):

• RTP: API 15S for spoolable reinforced plastic line pipe — long-term regression, spooling survival, hydrostatic testing.
• TCP: DNV/ISO composite pipeline frameworks (e.g., DNV recommended practices for TCP) — laminate strength, fatigue, fracture, and subsea design checks.

What auditors look for:

• Long-term pressure regression (creep) for polymeric systems.
• Bend/stuffing tests around minimum storage and installation radii.
• Fatigue curves for cyclic load cases (TCP), verified via full-scale tests.
• Gas permeation and venting management (RTP) vs gas-tight proofs (TCP).
• End fitting performance, pull-off, seal integrity, and thermal cycling.

Common failure themes (and how design counters them):

• RTP: Over-bending can buckle reinforcement; unbonded layers can slip under misuse. Respect the minimum bend radius and handling SOPs.
• TCP: Manufacturing voids or poor fusion undermine laminate strength. Invest in process control and NDE (e.g., ultrasound, thermography) for confidence.

8) The Selection Playbook (Answer These Ten Questions)

1. Where is the pipe?
   Onshore → RTP advantage. Offshore/deepwater → TCP default.
2. What’s the maximum operating pressure?
   ≤150 bar (maybe up to ~450 bar with heavy-duty RTP)? RTP fits.

150 bar routinely? TCP.

3. Temperature envelope?
   ≤85 °C typical → RTP liners suffice.
   Higher/sour + high temp → TCP with PA/PEEK matrix looks safer.
4. Fluid type and gas content?
   Vented gas tolerance? RTP is OK. Gas-tight requirement? TCP.
5. Dynamics & fatigue?
   Static land line? RTP. Dynamic riser/jumper? TCP.
6. Install speed priority?
   Aggressive schedule on land? RTP’s spoolability is a weapon.
7. Joint count and access constraints?
   Hard-to-access subsea tie-ins favor TCP’s long continuous lengths.
8. CAPEX vs OPEX risk appetite?
   Lean CAPEX? RTP. Life-of-field reliability under harsh duty? TCP pays back.
9. Standards & client specs?
   API 15S and similar onshore practices → RTP.
   DNV/ISO subsea composites → TCP.
10. Supply chain readiness?
    Have qualified tapes/laminates and fittings? Jota can help you stand up that capability.

9) Worked Scenarios (So You Can Sanity-Check Your Choice)

A. 60–100 bar onshore gathering line, mixed terrain, fast schedule

• Pick: RTP (HDPE or PA11 liner + glass/aramid reinforcement).
• Why: Rapid spool-out, fewer joints, minimal welding, excellent corrosion resistance.

B. 200+ bar subsea flowline with dynamic jumper segments

• Pick: TCP (PA or PEEK matrix + carbon/glass).
• Why: Bonded laminate for fatigue strength, gas-tight wall, fewer subsea connections.

C. Sour gas service with limited venting options

• Pick: TCP.
• Why: Gas-tight by design; simplifies safety and integrity management.

D. Remote desert water injection, harsh UV, cost focus

• Pick: RTP with UV-stabilized jacket; heavy-duty variant if pressures demand.
• Why: Easy logistics, quick trenching, strong cost profile.

10) Implementation Traps to Avoid (Experience Checklist)

• Ignore minimum bend radius? You’ll kink reinforcement (RTP) or overstress a bonded wall (TCP). Train crews, post bend-radius charts everywhere.
• Under-spec liners for chemistry/temperature? Expect premature degradation. Confirm with chemical compatibility tables and accelerated tests.
• Treat end fittings as an afterthought? Don’t. Qualification lives or dies here.
• Starve your tape/laminate quality? You’ll pay later. Control impregnation, consolidation, slitting, and storage.

11) FAQ — Crisp Answers for Stakeholders

Is TCP always “better”?
Not onshore. For medium–high pressures on land, RTP is faster and cheaper to install. TCP shines where pressure, fatigue, and gas-tightness dominate.

Can RTP run subsea?
Yes in benign cases, but deepwater/dynamic duty is TCP territory.

What about hydrogen or CO₂?
Both technologies are advancing. TCP’s gas-tight laminate is attractive; RTP with proper barriers and vent management can also qualify. Test your exact service envelope.

Are lifecycle emissions lower than steel?
Yes. Both avoid corrosion chemicals and heavy welding. Thermoplastic composites also enable reduced vessel time offshore (TCP) and fewer truckloads + welds onshore (RTP).

12) Summary You Can Share with the Board

• RTP = flexibility + speed + cost efficiency for onshore medium–high pressure service.
• TCP = pressure headroom + fatigue strength + gas-tight reliability for offshore/deepwater and high-stakes gas service.
• The right answer is contextual. If your constraints change (pressure, temperature, gas, dynamics), your choice may flip.

13) How Jota Machinery De-Risks Your Choice

Whether you standardize on RTP, TCP, or a portfolio mix, performance starts with perfect tapes and laminates. Jota Machinery equips you to manufacture them in-house:

• Thermoplastic impregnation lines (uniform fiber wet-out, precise resin content).
• Double-belt press consolidation (void-free UD tapes/organosheets).
• High-precision slitter-rewinders (from 3.175 mm AFP tapes to wide webs) with closed-loop tension and temperature.
• Process recipes tuned for glass, carbon, and aramid with PE/PA/PEEK matrices.
