Author: [Bruce Zhou]
Affiliation: [Jota Machinery Composites Material Prepreg Solution]
Corresponding Author: [jotamachinery@gmail.com]
Published : December 08 , 2025

Abstract

Graphene oxide (GO) has emerged as a powerful interphase modifier for carbon-fiber/epoxy composites, yet published results are scattered across different functionalization routes, loading levels and testing protocols. This narrative review consolidates current knowledge on how GO, introduced at the carbon fibre surface, in the epoxy matrix, or in both phases, alters interfacial adhesion and, in turn, the mechanical, thermal, electrical and viscoelastic response of carbon-fiber reinforced polymers (CFRPs). The paper first revisits the chemistry that underpins GO’s “interfacial coupler” role—polar oxygenated groups combined with a graphitic basal plane enabling chemical bonding to epoxy and π–π interaction with carbon fibres. It then surveys fibre-side treatments (GO grafting, electrophoretic deposition, hybrid GO/SiO₂ sizings), matrix-side incorporation (ultrasonication, high-shear mixing, three-roll milling) and multi-scale strategies that modify both fibre and matrix. Quantitative trends are extracted where possible: interfacial shear and interlaminar shear strength gains in the range of 30–90 %, flexural strength increases up to about 70 %, two-fold improvements in impact resistance in some reduced-GO systems, and noticeable rises in through-thickness thermal and electrical conductivity at low GO contents (typically 0.2–0.5 wt.%). The review also highlights trade-offs between mechanical and transport properties as GO functionalization densifies the interphase and partially disrupts the sp² network. Finally, critical gaps are identified in durability, process–structure–property modelling and scale-up, and a set of practical “design windows” is proposed to guide engineers who wish to introduce GO-modified CFRPs into aerospace, automotive and civil structures while staying within realistic manufacturing constraints.

Keywords

graphene oxide; carbon-fiber reinforced epoxy; fibre–matrix interface; interlaminar shear strength; thermal and electrical conductivity; multi-scale reinforcement; epoxy nanocomposite; advanced structural composites

1. Introduction

Carbon-fiber/epoxy composites are now central to modern lightweight structures in airframes, wind blades, vehicles and civil infrastructure. Their high specific stiffness, corrosion resistance and design flexibility are well established. At the same time, long service lives and demanding load spectra expose a well-known weakness: the fibre–matrix interphase often governs damage initiation, delamination and long-term durability. Improving interfacial adhesion without sacrificing processing robustness has become a key route to more reliable structural composites.

Graphene-based nanomaterials offer an attractive way to reinforce this interphase. Graphene oxide (GO), in particular, combines a graphitic carbon skeleton with a rich population of oxygen-containing functional groups. This unique dual nature allows GO sheets to interact with both the carbon fibre surface and the thermoset epoxy network. Over roughly the last decade, a substantial body of work has explored GO as a nano-modifier for carbon-fiber reinforced epoxy (CF/epoxy) systems, reporting notable improvements in interfacial shear strength, interlaminar shear strength, fracture toughness and, in many cases, thermal and electrical conductivity.

However, the literature remains fragmented. Some studies coat fibres with GO; others disperse GO nanosheets directly into the epoxy; a smaller number attempt multi-scale modification, placing GO at both fibre and matrix. Concentrations, functionalization routes and processing methods differ widely. Long-term durability, fatigue performance and environmental effects are rarely quantified. As a result, engineers seeking to specify a CF/epoxy/GO formulation for a real component still lack a clear set of design rules.

This paper offers a top-down review aimed at bridging that gap. Building on recent surveys of GO-modified CFRPs, it reorganizes the literature by the “location” of GO (fibre, matrix, or both), distils quantitative improvement ranges, and comments on the underlying micromechanisms. The focus is on practical questions: what GO chemistries and loadings are consistently effective; how different modification routes affect mechanical, thermal and electrical response; and which trade-offs matter when moving from laboratory coupons to certifiable structural parts.

2. Literature Review

2.1. Interfacial role of graphene oxide

Most studies converge on a common description of GO as a two-dimensional “interfacial bridge”. GO sheets carry hydroxyl, carboxyl, carbonyl and epoxy groups on their basal planes and edges, while retaining substantial sp² character in the core. The polar groups can form hydrogen bonds and covalent links with epoxy resins and oxidized fibre surfaces; the graphitic regions enable π–π stacking with the basal planes of carbon fibres. Together, these interactions create a denser, more cohesive interphase that improves stress transfer and crack deflection.

A recurring theme is that GO can heal micro-voids at the fibre/matrix boundary and suppress weak boundary layers associated with degraded sizings or incomplete wet-out. Microscopy of fractured specimens frequently shows crack paths that are deflected or branched at GO-decorated interfaces, with evidence of GO sheet pull-out and bridging. These mechanisms underpin much of the reported improvement in interfacial shear strength and fracture toughness.

At the same time, the degree and type of functionalization strongly influences performance. Heavy covalent modification introduces additional bonding sites but may convert too much of the sp² lattice into sp³ carbon, reducing the intrinsic thermal and electrical conductivity of the GO network. The best-performing systems in multi-functional terms are typically those that balance sufficient chemical activity with a reasonably intact graphitic backbone.

2.2. Fibre-side modification with GO

One major route is to modify the carbon fibre surface before composite manufacture. Reported strategies include:

• Covalent grafting of GO onto carbon fibres, often via multi-step wet chemistry (surface oxidation, acyl chloride formation, then reaction with amine-functionalized GO).
• Electrophoretic deposition (EPD) of GO or reduced GO, creating uniform coatings under an electric field.
• GO-containing sizings and hybrid GO/SiO₂ multilayers, applied from aqueous or alcoholic suspensions.
• Coatings with GO and graphite nanoplatelets, sometimes combined with conventional sizing agents.

Across these approaches, interfacial shear strength and interlaminar shear strength frequently increase by 50–90 % relative to untreated fibres, provided that the coating remains uniform and well bonded. Laminates produced with GO-modified fibres typically exhibit 15–35 % increases in tensile strength and meaningful gains in flexural performance. In some EPD-based systems, through-thickness electrical conductivity and electromagnetic shielding effectiveness are also improved, which is relevant for lightning strike protection and EMI control.

Limitations are less well explored. There are few systematic studies on the stability of GO coatings during prepreg manufacture, where fibres experience solvent exposure, shear and elevated temperatures, or during long-term moisture and thermal cycling in service. Nevertheless, for manufacturing routes that can accommodate fibre pre-treatment—such as in-house prepregging or resin infusion with bare fabrics—fibre-side GO modification appears to offer the largest interfacial gains with minimal changes to bulk resin formulation.

2.3. Matrix-side incorporation of GO

A second strategy is to introduce GO directly into the epoxy matrix. Dispersion techniques range from solvent-assisted ultrasonication to high-speed planetary mixing and three-roll milling. Three-roll milling, in particular, has been identified as effective for exfoliating GO agglomerates and distributing sheets uniformly in highly viscous epoxy systems, without additional solvents.

Most matrix-modified studies report an optimal GO content in the range 0.2–0.5 wt.%. At these low loadings, flexural strength often increases by up to about 60–70 %, and interlaminar shear strength gains around 20–30 % are typical. Beyond about 0.5 wt.%, SEM frequently reveals GO clusters acting as new defect sites, and mechanical properties plateau or decline. Viscosity increases with GO content as well, which can hinder impregnation in processes such as resin transfer moulding.

Matrix-only modification can also alter viscoelastic behaviour. Some systems report a slight reduction in glass transition temperature when GO consumes epoxy functional groups and leaves local hardener deficits; others show modest Tg increases when GO participates in the crosslink network. Results depend strongly on GO chemistry and cure protocol.

2.4. Multi-scale modification: fibre and matrix together

Multi-scale strategies place GO at both the fibre surface and in the epoxy, aiming to create a continuous network of GO-reinforced interfaces. Examples include:

• GO-coated fibres combined with GO-modified epoxy prepared by high-shear mixing or three-roll milling.
• Prepreg processes where GO is incorporated into both the sizing and the resin film.

These systems often report the largest combined gains in shear strength, flexural strength and, in some cases, thermal and electrical conductivity. However, they are also the most sensitive to processing conditions: epoxy viscosity, GO functional group density, coating mass per unit area, degassing and cure schedules all influence void content and microstructure. The literature rarely provides a clear process window, and repeatability across batches is not yet convincingly demonstrated.

For high-reliability sectors such as aerospace, multi-scale GO modification appears promising but arguably belongs to later implementation stages, after fibre-only or matrix-only modifications have been industrialised and characterised under relevant service conditions.

2.5. Reported property ranges

Across fibre-, matrix- and multi-scale routes, several consistent patterns emerge:

• Interfacial and interlaminar shear strength routinely increase by 30–90 % at optimal GO contents.
• Flexural strength gains are commonly in the 30–70 % range.
• Mode I and Mode II fracture toughness improvements of 10–40 % are typical, with some reduced-GO systems approaching a two-fold increase in impact toughness.
• Through-thickness thermal conductivity can increase by 20–80 % when GO networks are well connected and oriented.
• Electrical conductivity in the through-thickness direction often rises by one to two orders of magnitude from very low baseline values.

These figures should be interpreted as indicative bands rather than precise predictions, since fibre grade, resin chemistry, lay-up, cure schedule and test geometry vary significantly among studies.

3. Methodology

This work is a narrative review rather than an experimental study. The methodology combines three steps designed to provide a realistic, engineering-oriented synthesis.

Literature selection. Peer-reviewed articles and reviews on GO-modified carbon-fiber/epoxy composites were collected from major scientific databases, focusing on publications that reported quantitative property changes (interfacial shear strength, interlaminar shear strength, flexural and tensile strength, fracture toughness, thermal conductivity, electrical conductivity, storage modulus and glass transition temperature). Recent comprehensive reviews on GO-modified CFRPs were used as entry points to the broader citation network.

Re-organisation by modification route. Instead of following chronological order, the papers were reorganised according to the “location” of GO: (i) fibre-side modification, (ii) matrix-side incorporation and (iii) multi-scale modification. Within each group, emphasis was placed on GO chemistry (amine-functionalised, silanised, hybrid GO/SiO₂, reduced GO), loading level and processing method (e.g. ultrasonication, planetary mixing, three-roll milling, electrophoretic deposition).

Extraction of quantitative bands and mechanisms. For each route, property changes were normalised as percentage gains relative to the original carbon-fiber/epoxy baseline. Where multiple studies clustered in a similar range, representative improvement bands were reported. Qualitative micro-mechanisms—crack deflection, GO sheet pull-out, reduced micro-voids—were cross-checked against microscopy and fracture surface observations.

This approach trades statistical exhaustiveness for clarity: the aim is to give designers realistic expectation ranges and mechanistic understanding, rather than to catalogue every published data point.

4. Results

4.1. Fibre-side GO modification

Across different fibre-side strategies, several robust trends appear.

At modest GO coating levels and with appropriate functionalization (amine or silane coupling), interfacial shear strength increases in the order of 50–90 % relative to untreated carbon fibres. These gains reflect a combination of improved chemical bonding and mechanical interlocking at the fibre/matrix boundary. Interlaminar shear strength follows a similar trend, supporting the view that the interphase becomes more resistant to debonding.

Flexural strength improvements are more moderate, commonly 15–35 %, but important in structural applications where bending loads and matrix-dominated failure modes are critical. In some systems, through-thickness electrical conductivity and EMI shielding efficiency also increase due to the additional conductive pathways provided by GO or reduced GO coatings, particularly when graphite nanoplatelets are co-deposited.

Excessive or poorly controlled coatings, on the other hand, can introduce surface defects, local stiffness gradients or embrittled interphases that offset the benefits. There is also limited information on long-term stability of these coatings under environmental exposure.

4.2. Matrix-side GO incorporation

When GO is dispersed in the epoxy matrix at 0.2–0.3 wt.%, most studies report a consistent property uplift:

• Flexural strength increases up to around 60–70 %, especially when three-roll milling or high-shear mixing is used to achieve fine dispersion.
• Interlaminar shear strength gains of roughly 20–30 % are common in this loading window.
• Fracture toughness (Mode I and Mode II) improves by 10–40 %, with crack paths showing pronounced deflection and branching around GO-rich regions.

Beyond about 0.5 wt.% GO, agglomeration becomes more evident and properties tend to plateau or decline. The epoxy viscosity rises sharply at higher GO contents, complicating infusion and increasing the risk of voids.

Changes in thermal conductivity are generally more modest than in fibre-side or multi-scale cases, with improvements in the 10–50 % range depending on alignment and network connectivity. Electrical conductivity can rise by one to two orders of magnitude from a very low base, but remains far below values achieved with continuous carbon fibres.

Tg shifts are system-specific; some matrix-modified systems exhibit a slight drop in glass transition temperature, likely due to local changes in cure stoichiometry, while others show small increases when GO participates in crosslinking reactions.

4.3. Multi-scale GO modification

Multi-scale systems—GO on fibres and in the matrix—show the most pronounced property enhancements but are also the most complex to process. Reported data include:

• Interlaminar shear strength increases that can approach the upper end of the 80–90 % band.
• Flexural strength improvements of order 60–70 %.
• Significant gains in fracture toughness, impact resistance and, in some cases, combined thermal and electrical conductivity.

In these systems, GO acts at several length scales: as a nanoscale bridge at the fibre/matrix boundary, as a crack deflector and energy absorber in the bulk epoxy, and as part of a percolated thermal–electrical network. However, achieving these outcomes consistently demands strict control over GO loading in both phases, dispersion quality, coating coverage, degassing and curing. Published studies rarely present a fully quantified process window that a manufacturing engineer could adopt directly.

5. Discussion

5.1. Mechanistic interpretation

The improvement bands summarised above are consistent with a coherent micromechanical picture. At the interface, GO’s polar functional groups anchor the epoxy network to the fibre surface, while the graphitic cores align with the carbon fibre basal planes. This dual bonding mechanism increases interfacial cohesion and reduces the likelihood of early debonding under shear or tensile loading.

In the matrix, well-dispersed GO sheets stiffen the epoxy, promote crack path tortuosity and act as nanoscale bridges across micro-cracks. These effects explain the observed increases in flexural strength and fracture toughness at low GO contents. At higher loadings, agglomerates behave as inclusions that concentrate stress and trigger premature cracking, diminishing the benefits.

For transport properties, continuous or semi-continuous GO networks improve thermal and electrical conductivity along preferential paths. However, heavy covalent functionalization that maximises chemical bonding also introduces sp³ carbon, which interrupts electron and phonon transport. There is therefore a genuine trade-off between mechanical reinforcement and transport performance, particularly when GO is heavily functionalized.

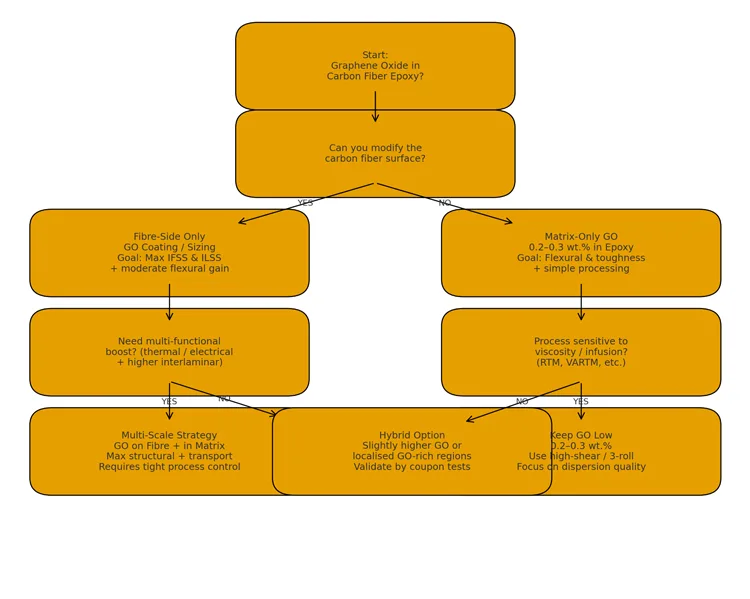

5.2. Practical design windows

From an engineering standpoint, several pragmatic guidelines emerge:

• Fibre-only GO modification appears most attractive when the manufacturing route allows carbon fibre pre-treatment and the goal is to maximise interfacial and interlaminar performance with minimal disruption to existing resin systems. It is particularly relevant for aerospace-grade prepregs and high-performance resin infusion where fibre wet-out and delamination resistance are critical.
• Matrix-only GO modification suits applications where fibre surfaces cannot be altered, such as when using commercial prepregs or fabrics with proprietary sizings. Keeping GO content in the 0.2–0.3 wt.% range, dispersed by robust methods such as three-roll milling, offers a reasonable balance between mechanical enhancement and processability.
• Multi-scale GO modification is most promising for components that demand both high structural performance and improved thermal or electrical conductivity, for example structural skins near power electronics or battery enclosures. Here, a staged development approach is advisable: establish reliable fibre-only and matrix-only processes first, then incrementally introduce multi-scale architectures with strong process monitoring.

5.3. Gaps and research needs

Despite encouraging laboratory data, several important questions remain open:

• Durability and fatigue. Very few studies report the behaviour of GO-modified CFRPs under cyclic loading, moisture uptake, thermal cycling, UV exposure or combined environmental stressors. For long-life structures, these data are as important as static strength.
• Process–structure–property modelling. There is no broadly accepted framework that links GO chemistry, loading level and dispersion state to interfacial properties and laminate-scale performance. Micromechanical models and multiscale simulations could help define safer design windows and explain variability.
• Standardisation of test protocols. Variations in fibre grade, epoxy type, lay-up, cure schedule and test specimen geometry make it difficult to compare data across studies. A more standardised set of benchmark configurations would greatly improve the usefulness of published results for design.
• Scale-up and cost. Most work to date is at coupon scale. The impact of GO modification on line throughput, scrap rate, re-work and total system cost is rarely quantified. For industrial adoption, process flow diagrams, cost models and quality-assurance protocols are needed, not just coupon data.

Addressing these gaps will require closer interaction between academic laboratories, material suppliers and end-users, with shared test matrices that capture both performance and manufacturability.

6. Conclusion

Graphene oxide has proven to be a versatile and effective nano-modifier for carbon-fiber/epoxy composites when used thoughtfully. Its combination of polar functional groups and a graphitic backbone enables GO sheets to act as nanoscale bridges between carbon fibres and epoxy matrices, strengthening the interphase and, in many cases, improving thermal and electrical pathways.

The literature shows that:

• Fibre-side GO modification can deliver large gains in interfacial and interlaminar shear strength, with moderate increases in flexural and tensile properties and improved electrical response.
• Matrix-side GO addition at low loadings (around 0.2–0.3 wt.%) enhances flexural strength and fracture toughness without unmanageable increases in viscosity, provided dispersion is carefully controlled.
• Multi-scale GO architectures, though more complex, can combine the best aspects of both routes and offer clear potential for multi-functional structural composites.

At the same time, the field is still some distance from providing ready-to-use design charts for certifiable components. Durability, fatigue resistance, environmental stability and scale-up issues require deeper study. Clearer process windows and standardised benchmarking are needed before GO-modified CFRPs can become mainstream in aerospace and high-reliability applications.

For engineers and designers, the most realistic near-term pathway is to treat GO as a targeted interphase modifier rather than a universal enhancer, selecting fibre-only, matrix-only or multi-scale strategies based on the specific structural requirements, manufacturing routes and qualification constraints of each application.

References

1. Sharma, H.; Kumar, A.; Rana, S.; Guadagno, L. An Overview on Carbon Fiber-Reinforced Epoxy Composites: Effect of Graphene Oxide Incorporation on Composites Performance. Polymers 2022, 14, 1548.
2. Bassyouni, M.; Javaid, U.; Sherazi, S.T.H. Recent Developments in Graphene Oxide/Epoxy Carbon Fiber-Reinforced Composites. Frontiers in Materials 2019, 6, 224.
3. Duongthipthewa, A.; Su, Y.; Zhou, L. Effect of Graphene Oxide/Graphitic Nanofiber Nanohybrids on Interfacial Properties and Fracture Toughness of Carbon Fiber-Reinforced Epoxy Matrix Composites. Composites Part B: Engineering 2021, 226, 109353.
4. Imran, K.A.; Shivakumar, K.N. Graphene-Modified Carbon/Epoxy Nanocomposites: Electrical, Thermal and Mechanical Properties. Journal of Composite Materials 2019, 53, 93–106.
5. Aslan, S. The Effect of Graphene Oxide on Thermal, Electrical and Mechanical Properties of Hybrid Polymer Composites Reinforced with Carbon Fiber. Polymer Composites 2024, 45, 4502–4513.
6. Costa, U.O.; Nascimento, L.F.C.; Garcia, J.M.; Bezerra, W.B.A.; da Costa, G.F.F.; da Luz, F.S.; Pinheiro, W.A.; Monteiro, S.N. Effect of Graphene Oxide as a Reinforcement in a Bio-Epoxy Composite. Journal of Composites Science 2021, 5, 91.
7. Bortz, D.R.; Heras, E.G.; Martin-Gullon, I. Graphene Polymer Nanocomposites. Advanced Materials 2013, 25, 1079–1095.
8. Rafiee, M.A.; Rafiee, J.; Srivastava, I.; Wang, Z.; Song, H.; Yu, Z.Z.; Koratkar, N. Fracture and Fatigue in Graphene Nanocomposites. Small 2010, 6, 179–183.
9. Monti, M.; Natali, M.; Torre, L.; Kenny, J.M. Mechanical and Electrical Properties of Graphene-Based Nanocomposites. Composites Science and Technology 2013, 80, 18–25.
10. Wang, F.; Drzal, L.T.; Qin, Y.; Huang, Z. Mechanical Properties and Thermal Conductivity of Graphene Nanoplatelets Reinforced Epoxy Composites. Journal of Materials Science 2015, 50, 1082–1093.
